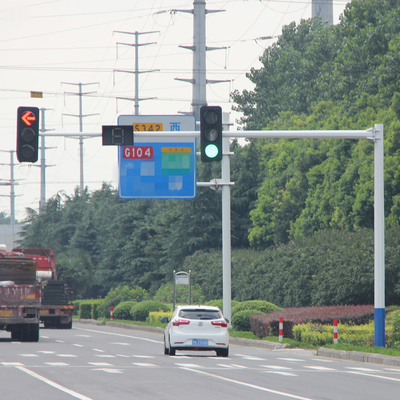

Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole

Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole
Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole

Large Image :  Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole

Product Details:
Place of Origin: Yixing, Jiangsu
Brand Name: mingyuan
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1500-20000/ set
Packaging Details: Top and bottom are packed with cloth
Delivery Time: 25 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800t/month

Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole

Description
Material: Q235B Steel Surface Treatment: Hot Dip Galvanized
Design: ANSI/TIA-222-G Bolt: GR8.8
Tolerance: ±1% Galvanization Standard: ASTM A123/ ISO 1461
High Light:

hot dip Traffic Signal Pole

,

galvanized Traffic Signal Pole

,

6m cantilever light pole

4m 5m 6m 10m conical galvanized round tapered Cctv Camera Pole

hot dip galvanized Traffic signal light pole cantilever light pole





Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole 0

Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole 1

Main pole structure
rectangle
Height
7000-7500mm
Arm length
6000mm ~ 14000mm
Main pole
150 * 250mm square pipe, wall thickness 5mm ~ 10mm
Cross bar
hot dip galvanized or spray plastic, color optional
Lamp face diameter
Ø400mm orØ 500mm
Chroma
red (620-625) green (504-508) yellow (590-595)
Working voltage
187v-253v, 50Hz
Rated power
single lamp < 20W
Service life of light source
> 50000 hrs
Ambient temperature
-40~+ 80℃
Protection grade
IP54



Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole 2

Main pole structure
cylindrical
Height
6800mm
Arm length
5000 ~ 14000mm
Wall thickness of main pole
5-10 mm
Wall thickness of cross bar
4- 8mm
Surface treatment
hot dip galvanized or spray plastic, color optional
Lamp face diameter
Ø300mm or Ø400mm
Chroma
red (620-625) green (504-508) yellow (590-595)
Working voltage
187 ~ 253v, 50Hz
Rated power
single lamp < 20W
Service life of light source
> 50000 hrs
Ambient temperature
-40~+ 80℃
Protection grade
IP54





Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole 3

Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole 4

Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole 5









Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole 6



Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole 7

Hot Dip Galvanized Traffic Signal Pole , 6m Cantilever Light Pole 8



Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.

Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.

We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.

Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
