Product Details:
|
| Height: | 10-45 Meters | Material: | FRP, Q355B Steel |
|---|---|---|---|
| Surface Treatment: | Hot Dip Galvanized, Painting | Design: | ANSI/TIA-222-G |
| Wind Speed: | 0-180KM/H | ASTM A123/ ISO 1461: | ASTM A123/ ISO 1461 |
| High Light: | galvanised Camouflage Cell Towers,hot dip Camouflage Cell Towers,antenna palm tree cell phone tower |
||
hot dip galvanized Camouflaged Palm Tree Antenna Telecom WIFI Tower telecommunications tower

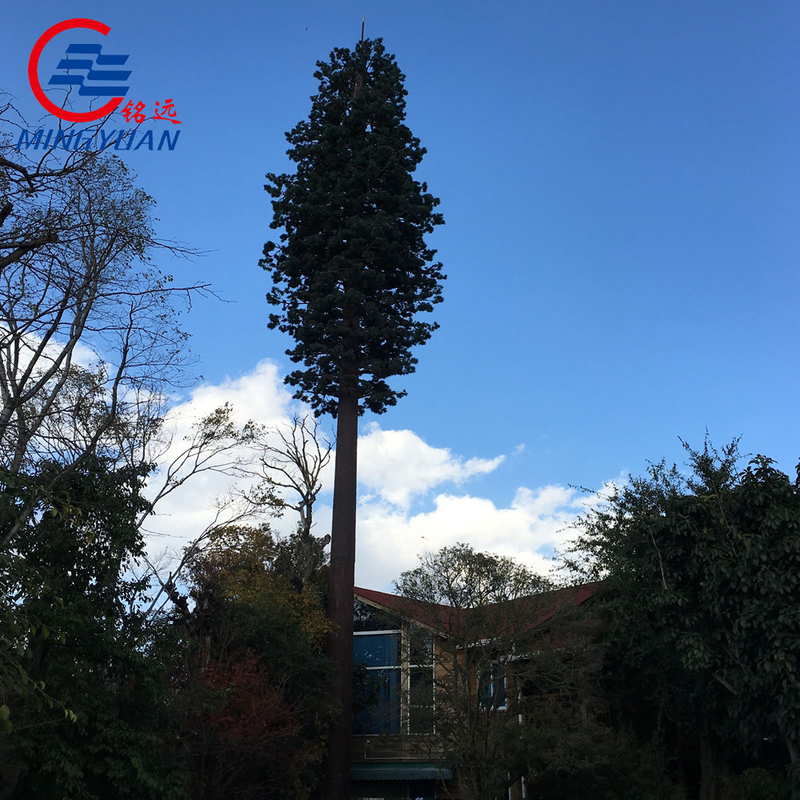

Camouflaged tree tower
This kind of tower is not much different from the other telecommunications tower, but camouflage tower uses certain material to undercover the equipment and the shape of its tower to features æsthetics and friendlier to environment.
| No | Description | Detailed Specification and Major design Parameters |
| 1 | Design Standard | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading | 1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| 3 | Structure Classification | II |
| 4 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 5 | Steel Grade | 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 6 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 7 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 8 | Tower Type | Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree |

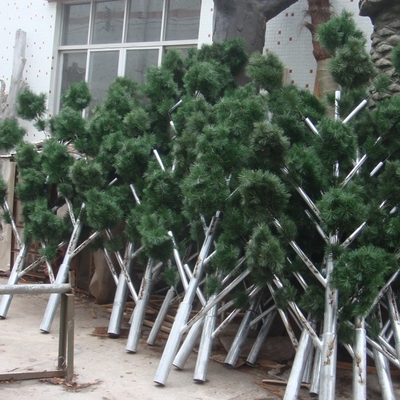

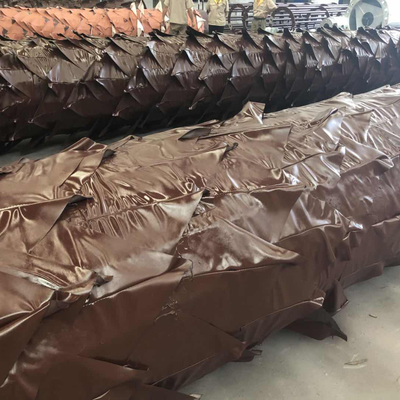

| 9 | Warranty | 1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years |
| 10 | Return Period | 50 Years |
| 11 | Accessories | 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.5. ACDB as per specified by clients6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.7. Fall arrest system: GB and CE certificate fall arrest system.8. Optical Fiber Cable: as per specified by client9. Generator: as per specified by client10. Canopy and Generator Cage: as per specified by clients |

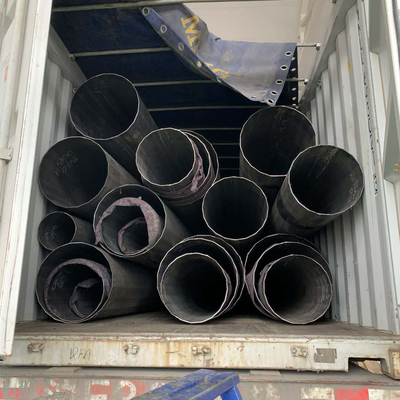

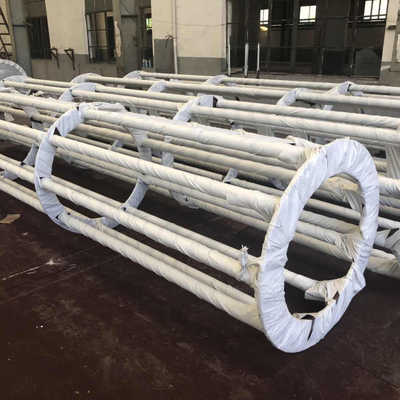

1. Cutting 2. Bending 3. Welding 4. Polishing 5. Galvanizing 6. Testing 7. Packing 8. Delivery
Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.
Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.
We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.
Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
Towers made by our company can be widely used in army, post, telecommunication, mobile communication, water resource, traffic, public security, raiway, banks, coalmine, metallurgy, radio and TV,etc.The best design can be made by our company according to the information about the site of the tower and the related natural conditions provided by the client.
We would be glad to offer you excellent products pricing and service!
