Product Details:
|
| Material: | Q355B Steel | Surface Treatment: | Hot Dip Galvanized |
|---|---|---|---|
| Design: | ANSI/TIA-222-G | Bolt: | GR8.8 |
| Height: | 15-60m | Galvanization Standard: | ASTM A123/ ISO 1461 |
| High Light: | antenna Tubular Steel Tower,18m Tubular Steel Tower,galvanized self supporting antenna mast |
||
Telecom Network Microwave 18 Meter Mast Triangular Tubular Steel Outlet Telecommunication Antenna Tower Pole
galvanized self support Telecom Network Microwave Mast Triangular Tubular Steel Telecommunication Antenna Tower

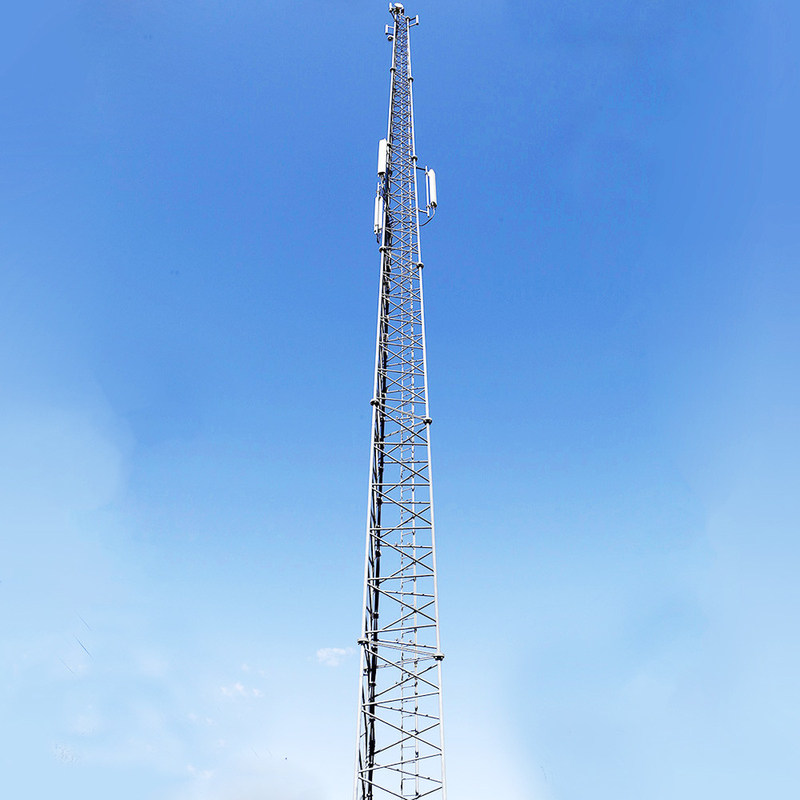

Triangular steel tower
3 legged self supporting towers are made of triangular angular elements designed on a triangular base pattern. The communication tower is optimized for medium to heavy loads which is used for standard cellular sites.
The main features of the self-supporting towering steel structure are: the three-pipe tower column is made of steel pipe, the section of the tower body is three-sided, which is different from the angle steel structure. Applicable height: 40m, 45m, 50m. The new three-pipe communication tower includes tower base, horizontal bar, inclined bar, antenna bracket, lightning rod and tower socket device.
| Height | From 15-60m or according to client’s requirement | |||||
| Suit for | Signal Transmission and Distribution | |||||
| Shape | angle steel, pipe | |||||
| Material | Normally Q235B/A36,Yeild Strength≥235MPa | |||||
| Q345B/A572,Yeild Strength≥345MPa | ||||||
| As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400 | ||||||
| Wind speed | 35m/s | |||||
| Tolerance of the dimension | According to client’s requirement | |||||
| Surface treatment | Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement | |||||
| Joint of Poles | flanged connected | |||||
| Standard | ISO9001:2008 | |||||
| Life period | 30 years | |||||
| Welding Standard | AWS(American Welding Society)D 1.1 | |||||
| Production Process | Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages | |||||
| Packages | Packing with plastic paper or according to client’s requirement | |||||
| Life Period | More than 25 years, it is according to installing environment | |||||

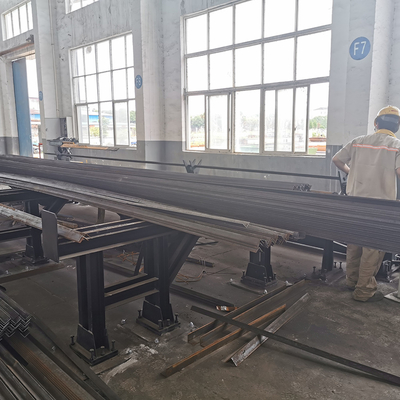

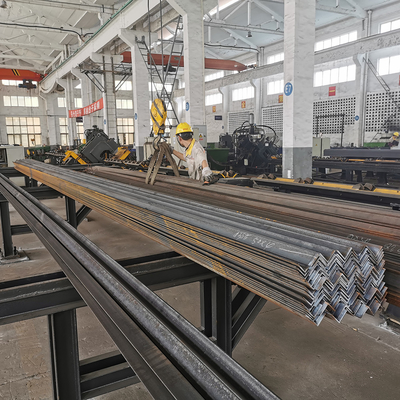

1, Cutting 2, Bending 3. Welding 4, Polishing 5, Galvanizing 6, Testing 7. Packing 8. Delivery
Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.
Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.
We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.
Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
Quality control
100% inspection: Each member will be checked by our QC team to ensure all members are qualified before delivery.
Package
Set-wisely packing or member-wisely packing as per client's requirements.
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.
