Product Details:
|
| Material: | Q355B Steel | Surface Treatment: | Hot Dip Galvanized |
|---|---|---|---|
| Design: | ANSI/TIA-222-G | Bolt: | GR8.8 |
| Tolerance: | ±1% | Galvanization Standard: | ASTM A123/ ISO 1461 |
| High Light: | mingyuan 20m Lattice Steel Tower,mingyuan 30m Lattice Steel Tower,mingyuan 50m 4 leg tower |
||
20m 30m 40m 50m 4 Legged Tower Microwave Communication Antenna

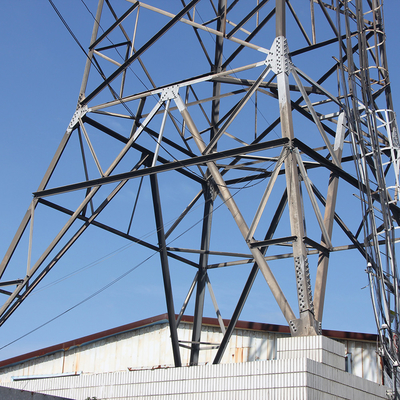

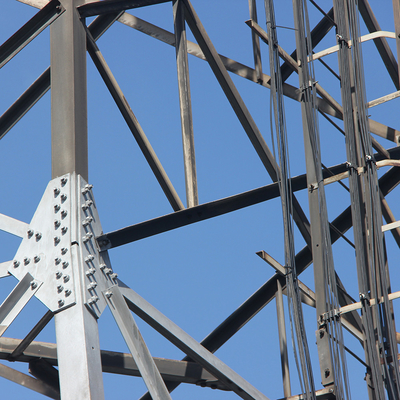

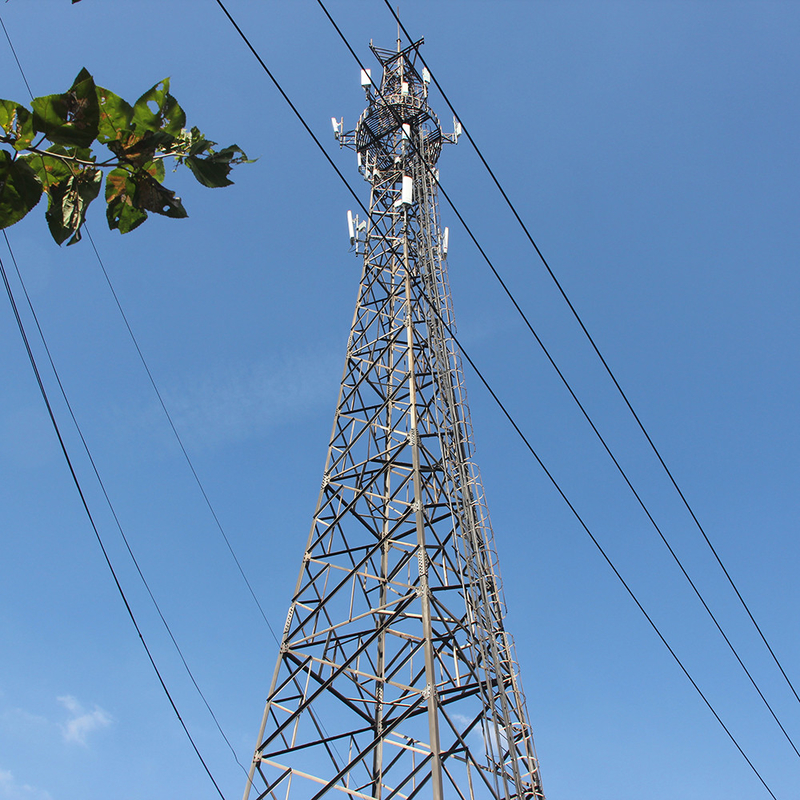

What Is 4 Legged Angular Steel Tower?
4 legged angular steel tower is a kind of self-supporting communication tower,It can also be called 4 legged angular steel communication tower, telecommunication tower, antenna tower.

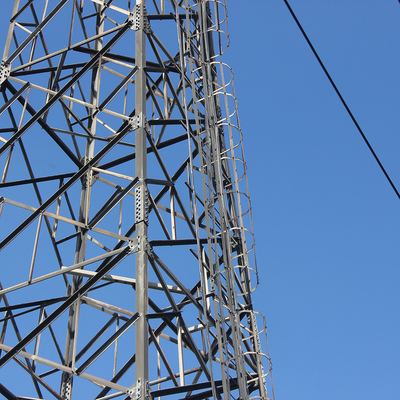

4 legged angular steel tower are higher steel structures used all over the world for communication applications. Their function to support antennas for telecommunications, broadcasting and WIFI internet. 4 legged angular steel tower is usually come with pre-designed accessories, just like platforms, ladders with cable tray, antenna brackets, aviation light brackets and fall prevention device, etc.
4 legged angular steel tower are based on either ground or building, and they are commonly designed in trusses structure to carry the wind loads and seismic loads. 4 legged angular steel tower is easy to process, transport and install. The overall rigidity of the angle steel tower is large, the bearing capacity is strong, and the technical application is mature.
| Design Code | ANSI/TIA222G, European Standard and others |
| Design Loading | 1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| Steel Grade | 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| Accessories | 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients |
Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.
Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.
We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.
Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
FAQ
1. Are you a manufacturer or trading company?
Our company is a transmission tower, communication tower and related accessories professional manufacturers, with experienced
workers. All of our products are made according to customer demand production.
2. What is your main products?
Our Company is mainly manufacturing all kinds of steel towers, including angle steel towers, steel tube towers, steel tube poles,
substation structures, fittings and components of power line transmission and distribution, etc.
3. What is the standard of your products?
Our products are all manufactured in accordance with the requirements of the GB2694-2018.
4. Which port for delivery?
Located in Yixing city, we mainly ship from big ports such as Shanghai, Ningbo ports.
