Product Details:
|
| Material: | Q355B Steel | Surface Treatment: | Hot Dip Galvanized |
|---|---|---|---|
| Design: | ANSI/TIA-222-G | Wind Speed: | 120KM/H |
| Supply Ability: | 30000 Ton/Tons Per Year | Welding Standard: | AWS(American Welding Society)D 1.1 |
| Wind Load: | 0.35-0.85kN/sqm | Structure: | Lattice Tower |
| Function: | As A Frame Base Structure | Voltage: | 35kV, 66kV, 220kV, Etc |
| High Light: | 110kv power transmission tower,hot dipped power transmission tower,220kv lattice structure transmission tower |
||

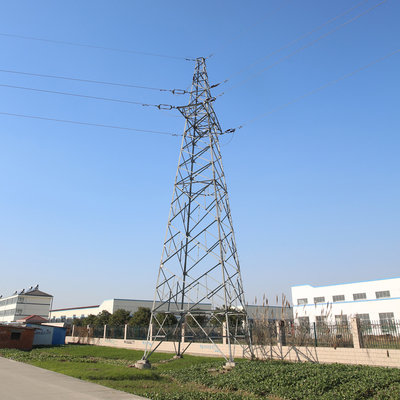

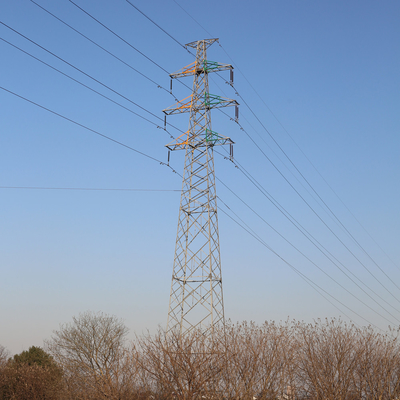

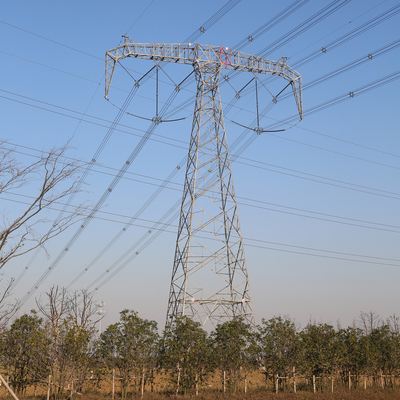

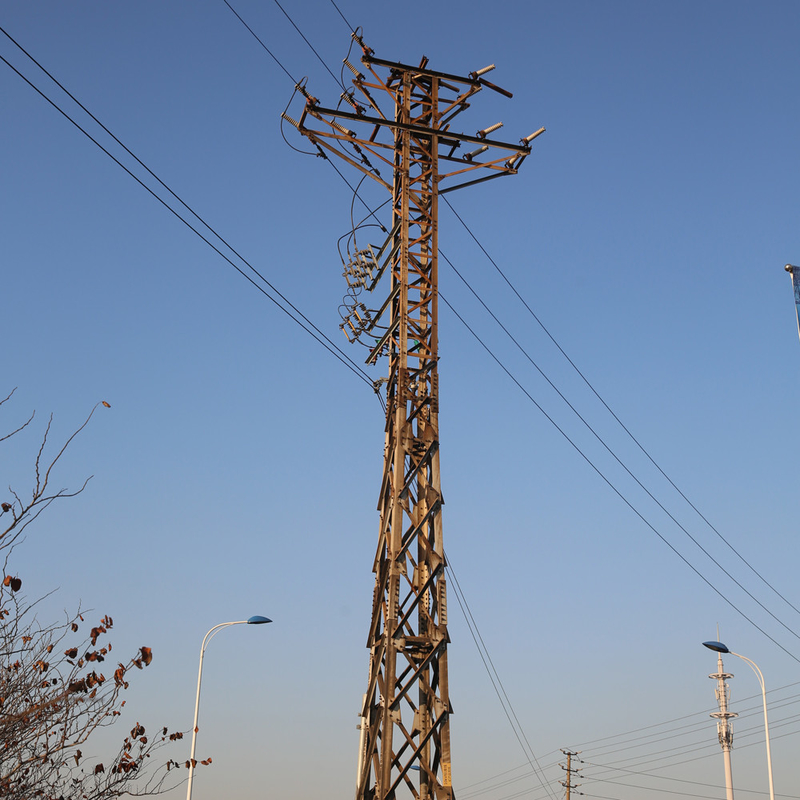

Hot dip galvanized Q345B 4 Leg Angle Steel Electric Power Transmission Tower
A transmission tower, also known as an electricity pylon or simply a pylon in is a tall structure, usually a steel lattice tower, used to support an overhead power line.
Angle steel tower has good rigidity, suitable for high requirements for horizontal displacement of base station; simple structure, easy processing, convenient for factory production. Generally high tower type, suitable for meet the requirements. Don't need to apply to large hoisting equipment, installation is convenient. Applicable to rural and suburban area which is open, lower area on the appearance requirements.
| Height | From 10M-100M or according to client’s requirement | |||||
| Suit for | Electric Power Transmission and Distribution | |||||
| Material | Normally Q235B/A36,Yeild Strength≥235MPa | |||||
| Q345B/A572,Yeild Strength≥345MPa | ||||||
| As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400 | ||||||
| Power Capacity | 10kV to 500kV | |||||
| Tolerance of the dimension | According to client’s requirement | |||||
| Surface treatment | Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement | |||||
| Joint of Poles | Slip joint, flanged connected | |||||
| Standard | ISO9001:2008 | |||||
| Length of per section | Within 13M once forming | |||||
| Welding Standard | AWS(American Welding Society)D 1.1 | |||||
| Production Process | Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages | |||||
| Packages | Packing with plastic paper or according to client’s requirement | |||||
| Life Period | More than 25 years, it is according to installing environment | |||||
Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.
Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.
We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.
Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
Why choose us:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 11 years, competitive with good quantity.
7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
