Product Details:
|
| Product Name: | 11KV Hot Dip Galvanized Electricity Pole Galvanized, Octagonal Electric Utility Poles | Material: | Q355B Steel And Q235B Steel |
|---|---|---|---|
| Surface Treatment: | Hot Dip Galvanized | Design: | ANSI/TIA-222-G |
| Bolt: | GR8.8 | Shape: | Polygonal Or Conical |
| Height: | 9-100m | Capacity: | 10kV To 220kV |
| Standard: | ISO9001, ASTM123, BS729 | ||
| High Light: | polygonal Steel Utility Pole,Conical Steel Utility Pole,q235b double circuit transmission line |
||

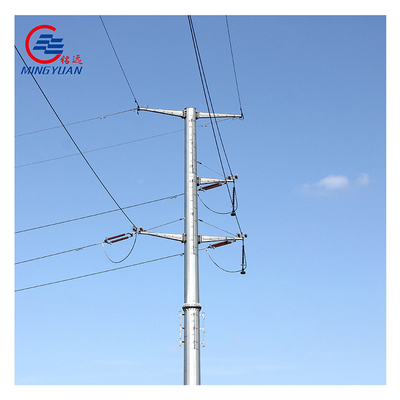

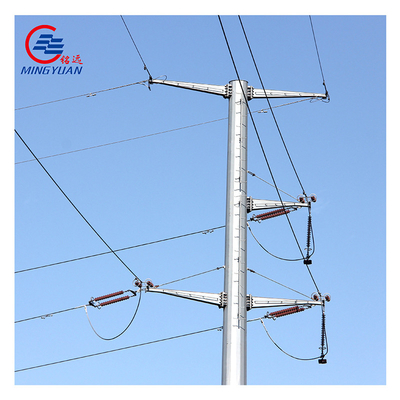

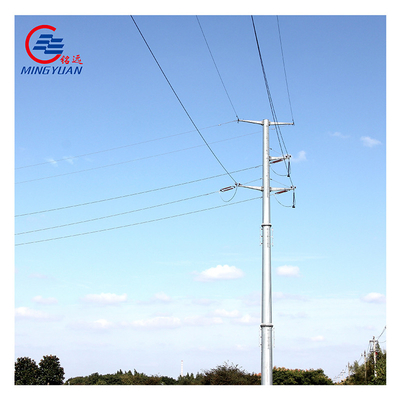

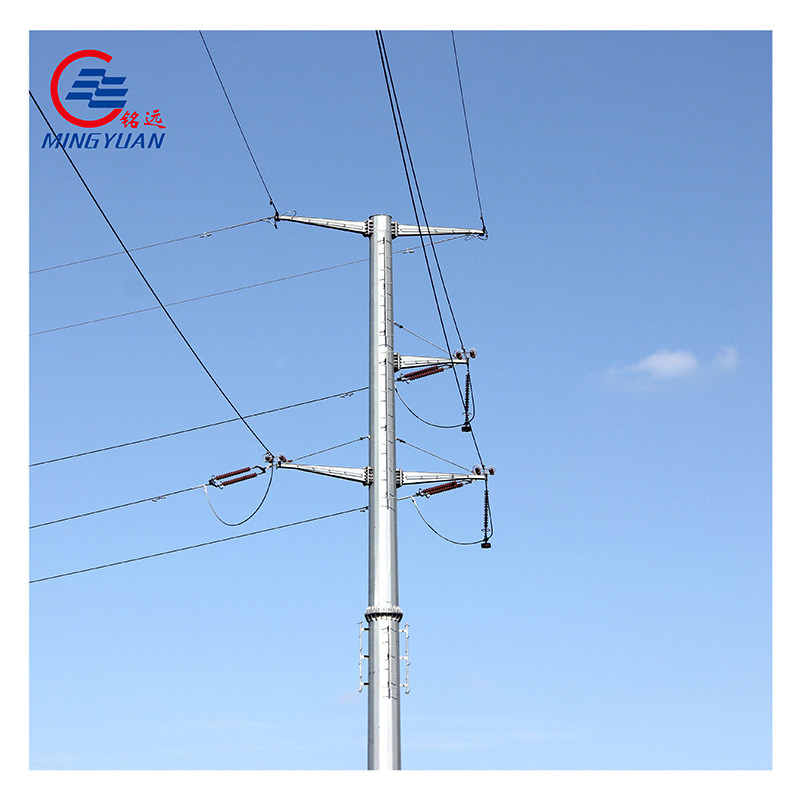

69kv hot dip galvanized Q235b Q355B steel double circuit transmission line power poles
69kv double circuit transmission line power poles
| Height | 9m-100m |
| Suit for | Electric Power Transmission and Distribution |
| Shape | Polygonal or Conical |
| Material |
Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36 Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400 |
| Power Capacity | 10kV to 220kV |
| Tolerance of the dimension | According to client’s requirement. |
| Surface treatment | Hot dip galvanized Following ASTM A 123, or any other standard by client required. |
| Joint of Poles | Slip joint, flanged connected |
| Standard | ISO 9001:2008 |
| Length of per section | Within 14 meter once forming |
| Welding Standard | AWS (American Welding Society ) D 1.1 |
| Thickness | 1 mmto 36mm |
| Production Process | Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
| Packages | Packing with plastic paper or according to client’s request. |
Transmission line poles
Transmission line poles and towers are tower structures used to support and raise overhead conductors, lightning rods and other accessories, so that conductors and conductors, poles and towers, conductors and lightning rods, and conductors on the ground or across objects to maintain a specified safe distance from the towering structure.According to the purposes are: tension tower, straight tower, corner tower, transposition tower (replacement of wire phase position tower), terminal tower and spanning tower.
1. Cutting 2, Bending 3, Welding 4, Polishing 5,Galvanizing 6, Testing 7, packing 8, Delivery
Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.
Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.
We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.
Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
FAQ
Price Term: EXW, FOB, CFR or CIF and so on
Shipping port:Shanghai port
Payment Term: Usually 30% by T/T as deposit balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
Delivery Time: Usually 25-45 days after PO/drawing/prepayment confirmed.
Package: Normally we use steel wire to make the angle into bundle ,then use special material to protect the zinc, or according to client’s requirement.
Please provide drawings if you have so that we can calculate the accurate price for you.
We also provide design according to your requests, if you don't have drawings.
.
