Product Details:
|
| Product Name: | Hot Dip Galvanized Electric Steel Power Poles Solar LED Street Light Pole Angular Tubular Pole For Sale | Material: | Q355B, Q235B, A572, A36, SS400 |
|---|---|---|---|
| Surface Treatment: | Hot Dip Galvanized | Design: | ANSI/TIA-222-G |
| Bolt: | GR8.8, GR6.8 | Shape: | Polygonal, Conical, Angular, Tubular, Octagonal, Tapered |
| Height: | 9-100m | Capacity: | 10kV To 330kV |
| Standard: | ISO9001, ASTM123, BS729 | ||
| High Light: | Angular Tubular Galvanized Steel Utility Pole,A572 Electric Power Steel Utility Pole,100m Solar LED Steel Utility Pole |
||
Hot Dip Galvanized Electric Steel Power Poles Solar LED Street Light Pole Angular Tubular Pole For Sale
| Height | 9m-100m |
| Suit for | Electric Power Transmission and Distribution, Lighting, Telecommunication |
| Shape |
Round conical; Octagonal tapered; Straight square; Tubular stepped; Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine |
| Material |
Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36 Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400 |
| Power Capacity | 10kV to 330kV |
| Tolerance of the dimension | According to client’s requirement. |
| Surface treatment | Hot dip galvanized Following ASTM A 123, or any other standard by client required. |
| Joint of Poles |
Jointing of pole with insert mode,innerflange mode,face to face joint mode. |
| Standard | ISO 9001:2008, ISO9001, ASTM123, BS729 |
| Length of per section | Within 14 meter once forming |
| Welding Standard | AWS (American Welding Society ) D 1.1.
It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international welding standard of CWB. |
| Thickness | 1 mmto 36mm |
|
Galvanizing |
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
| Production Process | Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
| Packages | Packing with plastic paper or according to client’s request. |
Utility pole

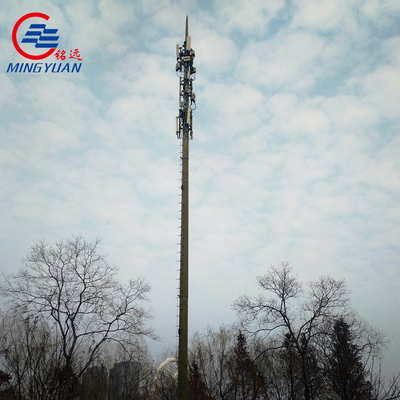

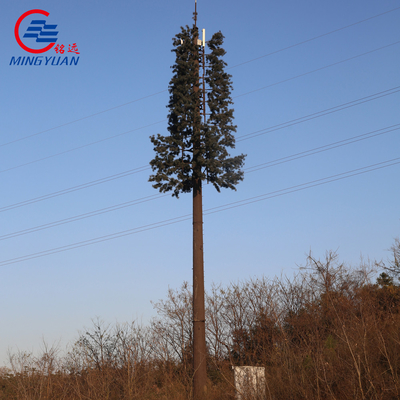

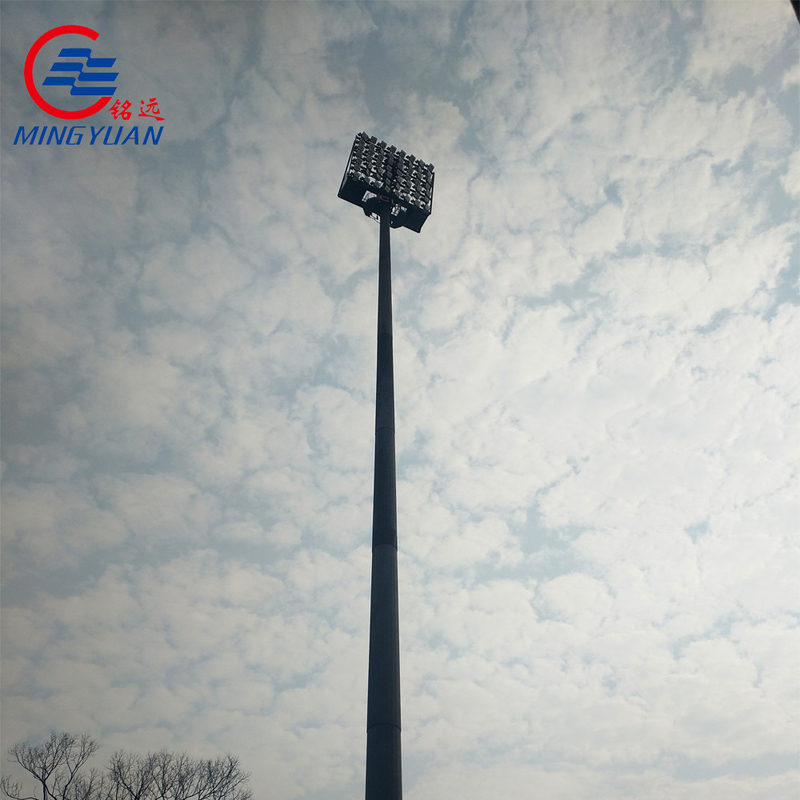

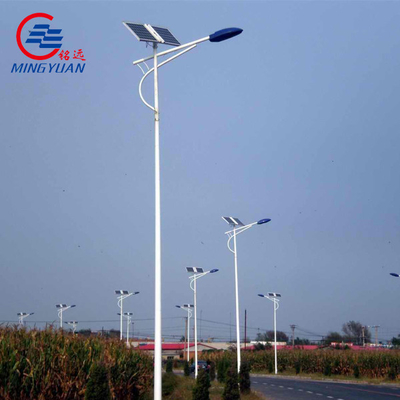

A utility pole is a tall pole used to carry telephone wires and other utility lines above the ground, used to support overhead power lines and various other public utilities, such as electrical cables, and related equipment such as transformers, solar LED lights, street lights, and telecommunication devices. It can be called as a transmission pole, telephone pole, telecommunication pole, power pole, telegraph pole, or telegraph post, depending on its application and usage.

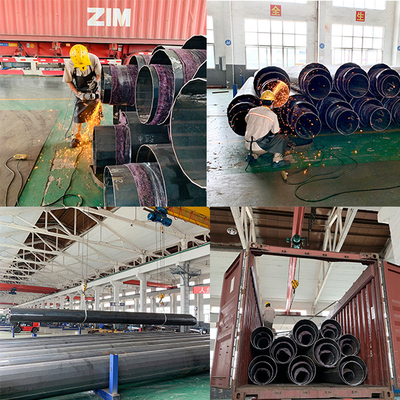

1. Cutting 2, Bending 3, Welding 4, Polishing 5,Galvanizing 6, Testing 7, packing 8, Delivery
Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.
Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.
We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.
Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
