Product Details:
|
| Height: | 10-45 Meters | Material: | Q355B, Q460, Q235B, SS400, A572 |
|---|---|---|---|
| Galvanized Standard: | ISO 1461 2009, ASTM A123 | Design: | ANSI/TIA-222-G |
| Tower Type: | Camouflaged Tower: Palm Tree, Pine Tree, Coconut And Others Tree | Galvanization Standard: | ASTM A123/ ISO 1461 |
| Product Name: | Decorative Camouflaged Antenna Cell Cellular Telecom Towers Palm Tree Telecommunication Tower | Surface Treatment: | Hot Dip Galvanized, Painting, Powdering |
| High Light: | Decorative Camouflage Cell Towers,Q460 Camouflage Cell Towers,45meters Camouflage Cell Towers |
||
Decorative Camouflaged Antenna Cell Cellular Telecom Towers Palm Tree Telecommunication Tower

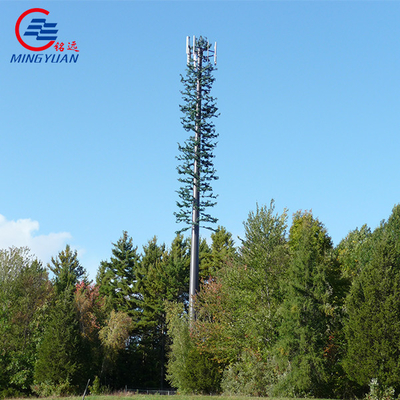

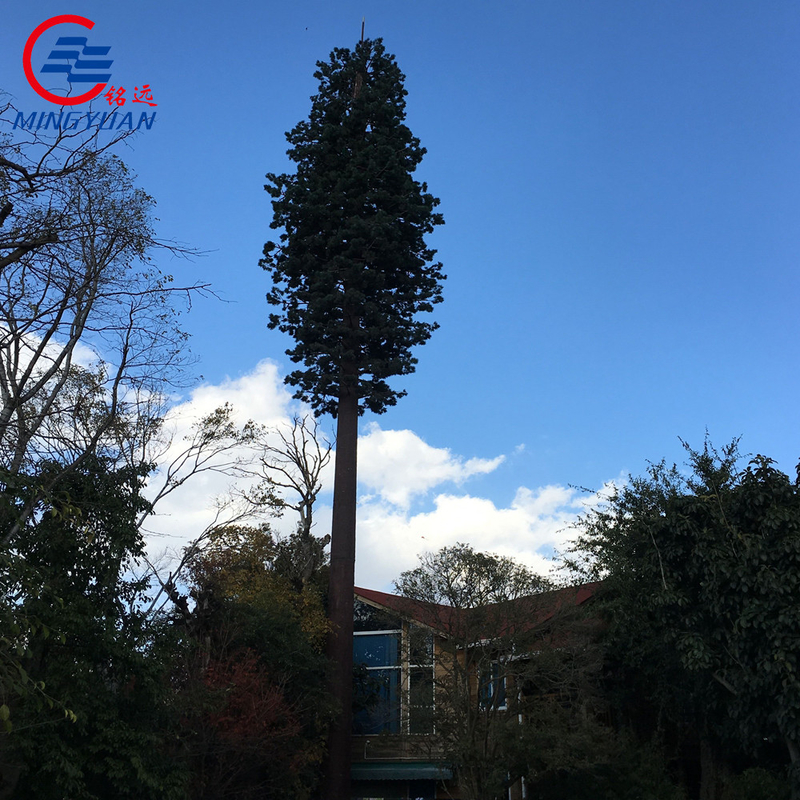

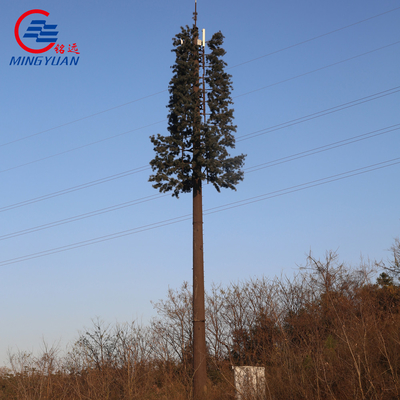

Camouflaged tree tower
The Camouflage Cell Towers is to coordinate the communication tower with the surrounding natural environment, effectively solving the problem of difficult construction in scenic spots and other places. The product is made of synthetic resin as a binder, supplemented with high-grade chemical raw materials to make plastic substrates, used as trees. Sculpture bases such as rods, tree branches, bark, and roots are sprayed with advanced acrylic paint to modify the surface and enhance durability.
| No. | Description | Detailed Specification and Major Design Parameters |
| 1 | Design Standard | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading | 1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| 3 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 4 | Shape | Polygonal, Conical |
| 5 | Steel Grade | 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| 6 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 7 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 8 | Tower Type | Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree |
| 9 | Warranty | 1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years |
| 10 | Return Period | 50 Years |
| 11 | Application | Telecommunication |

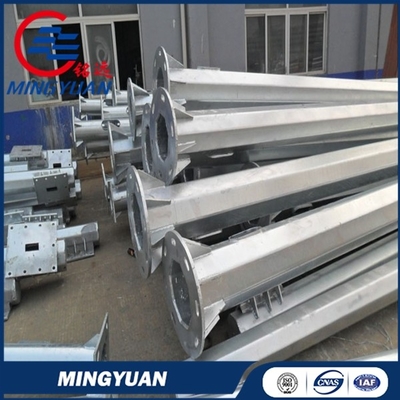

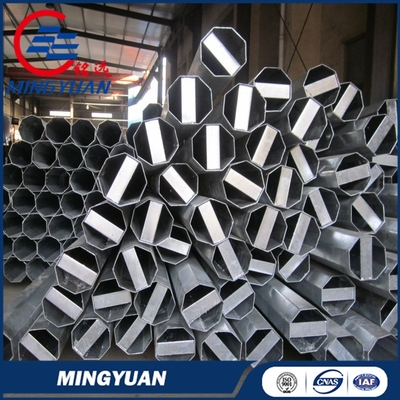

1. Cutting 2. Bending 3. Welding 4. Polishing 5. Galvanizing 6. Testing 7. Packing 8. Delivery
Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.
Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.
We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.
Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
We can provide you with a complete set of service from technical design ,fabrication to shipment:
1. Products Communication tower (including Three legged angle steel tower, four legged angle steel tower , Single pole tower), (Angle steel tower , Single- pipe tower , Steel tube tower),(Square steel tower, Triangular tower, Monopole),Microwave tower, Guyed tower(Guyed Masts), Self supporting tower , Guard tower, Bionic tower,Cell phone tower, lattice tower, Broadcast and TV tower, wind power tower, Power transmission tower ,Electric Power Series Towers (--Substation Structures,-Power Transmission Line Angle Steel Tower, -Power Transmission Line Steel Tube Towers), Street Light Pole Series, Technical Decoration Series Towers, Environment Series Towers etc.all kinds of towers.
2. Notion :Manufacturing with heart ,Achieving with Honesty.
3. Certificattion: we have passed ISO9002 certification and SGS .
4. We have many advanced equipments which ensure the capacity of 100,000 tons high precision products each year .
5. We hold quality and honor as our persistent goal and have occupled markets with different technological products.
Contact Person: Ivy
Tel: 18251565567
Fax: 86-510-80779829
