Product Details:
|
| Voltage: | 35kV, 66kV, 220kV | Surface Treatment: | Hot Dip Galvanized |
|---|---|---|---|
| Design: | ANSI/TIA-222-G | Bolt: | GR8.8 |
| Tolerance: | ±1% | Product Name: | Substation Transmission Line Galvanized Steel Frame Gantry Structure Design And Manufacture |
| High Light: | Substation Transmission Line Gantry Structure,220kV Substation Gantry Structure Steel Frame,ANSI Substation Gantry Structure |
||
Substation Transmission Line Galvanized Steel Frame Gantry Structure Design and Manufacture
galvanized transmission line substation steel structure products

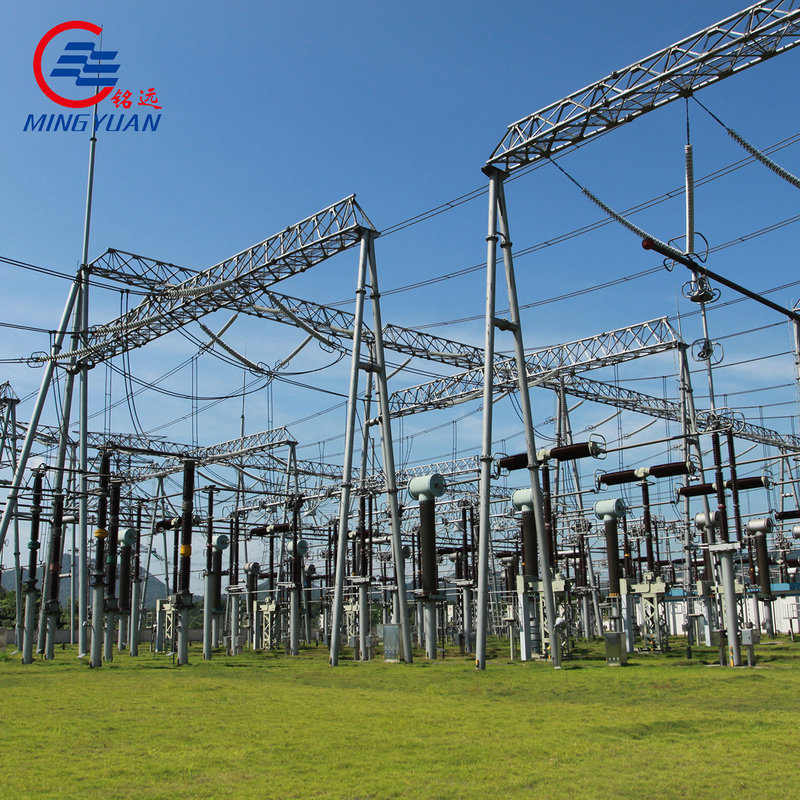

Gantry structures are mainly used for guiding the power conductor from last tower near substation to the electrical equipments in a substation. This structure consists of a number of columns and beams, which depend on number of circuits of the line. Gantries are also used for line crossing.
These structures include Gantries and Equipment Support Structures. Gantry structures are mainly used for guiding the power conductor from last tower near substation to the electrical equipments in a substation. This structure consists of a number of columns and beams, which depend on number of circuits of the line. Gantries are also used for line crossing.
Manufacturing process: Cutting →Bending →Welding→Dimension verify →Pole arm welding →Polish, surface clean →Flange welding →Hole drilling →surface clean→ Hot dip galvanization →Spray →Recalibration →Packaging →Shipping
| Raw Material | Steel Q235B/Q345B/Q420 |
| Tower Type | Angel steel tower, steel tube combination tower |
| Related Fittings | Steel tower bolts and nuts |
| Related Products | Transformer substation structure, telecommunication steel tower |
| Tower Weights | Designed as customers' requirements |
| Voltage Grade | 10-750KV |
| Valid year | 30-50 years |
Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.
Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.
We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.
Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
Why choose us:
1. We create high-quality substation gantry for customers.
2. We provide good service to customers' satisfaction.
3. Qualified acceptance rate is 100%.
4. We hold quality and honor as our persistent goal and have occupied markets with different technological products.
5. We will promise to provide you with excellent Hot-dip Galvanized substation tructure, best price and sincere service !
If you are free, welcome to visit our company and factory.
We are looking forward to cooperation with you !
