Product Details:
|
| Product Name: | Octagonal Galvanized Steel Poles Steel Tubular Poles Manufacturer | Material: | GR50, GR65 |
|---|---|---|---|
| Surface Treatment: | Hot Dip Galvanized, Coating, Powdering, Painting | Design: | ANSI/TIA-222-G |
| Bolt: | GR8.8 | Shape: | Polygonal Or Conical |
| Height: | 9-100m | Capacity: | 10kV To 220kV |
| Standard: | ISO9001, ASTM123, BS729 | ||
| High Light: | octagonal 11 mtr steel tubular pole,galvanized 11 mtr steel tubular pole,galvanized 11 mtr stp pole |
||

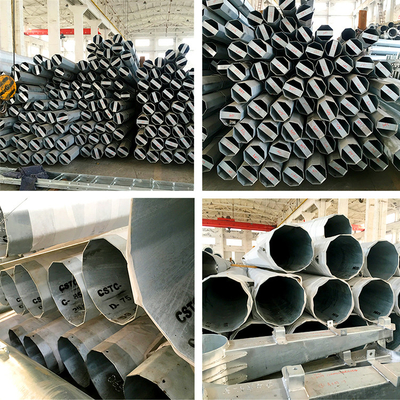

Octagonal Galvanized Steel Poles Steel Tubular Poles Manufacturer
| Height | 9m-100m |
| Suit for | Electric Power Transmission and Distribution |
| Shape | Polygonal or Conical |
| Material |
Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36 Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400 |
| Power Capacity | 10kV to 220kV |
| Tolerance of the dimension | According to client’s requirement. |
| Surface treatment | Hot dip galvanized Following ASTM A 123, or any other standard by client required. |
| Joint of Poles | Slip joint, flanged connected |
| Standard | ISO 9001:2008 |
| Length of per section | Within 14 meter once forming |
| Welding Standard | AWS (American Welding Society ) D 1.1 |
| Thickness | 1 mmto 36mm |
| Production Process | Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
| Packages | Packing with plastic paper or according to client’s request. |
Electricity Power Steel Tubular Pole Specification:
1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc
2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.The welders have got corresponding certificate after testing and inspection.
3) Finish: Hot-dip galvanized in accordance with ASTM A123.
4) Pole Height: All available
5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)
7) Surface hot-dip-galvanized & painting
8) Resistant: against earthquake of 8.8 grade. Wind speed as design.
9) Quality Standard: ISO9001:2000,AAA credit rating
10) Easy install and maintenance
11) Packages: Normally covered by sack or as customer’s requirement.
12) Voltage:10-550KV
Features;
1. High Quality Steel
2. Easy Install and Maintenance
3. Highly Corrosion Resistant
4. Durable
5. Long Life
Manufacturing process: Cutting →Bending →Welding→Dimension verify →Pole arm welding →Polish, surface clean →Flange welding →Hole drilling →surface clean→ Hot dip galvanization →Spray →Recalibration →Packaging →Shipping
Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.
Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.
We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.
Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
FAQ
1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 sets for Customized
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.
5. Warranty : 30 years
6.Surface treatment :hot dip galvanization
