High Voltage Galvanized Conical Electric Power Distribution Transmission Line Towers

High Voltage Galvanized Conical Electric Power Distribution Transmission Line Towers

Product Description 12m galvanized steel electrical pole tower Products Show Our Company Jiangsu Ming Yuan Tower Co., LTD, is a professional manufacturer and exporter that is specialized in designing, researching, developing and producing communication tower, power transmission tower, lightning...

Send Inquiry

Product Details

Product Description

12m galvanized steel electrical pole tower

Pole's height
12m
Type
Low ,Middle and higher Voltage
Shape of pole
Conical, Round, Polygonal (Octagonal, Dodecagonal, etc).
Crossarm
Designas per customers' requirement
Material
Steel materials conform to ASTM A36, ASTM A572.
Q235 equivalent to SS400, S235JO.
Q345 equivalent to S355JR,Grade 50
Q460 equivalent to S460, Grade 65
Wall thickness
 2.5mm , 2.75mm, 3.0mm, 3.5mm, 3.75mm, 4.0mm, 4.5mm, 4.75mm, 5.0mm,etc
Sections
≤11900mm can be with one section and loaded into 40HQ container.
≥12000mm need be designed with 2 sections.
Unless use Flat Rack Container.
Welding
Welding complies with CSA and AWS D1.1 standard.
Joint
 Joint with Slip Joint or flange mode.
Installation
1.  Burial Type.
2.  Base plate is square or round with slotted holes for anchor bolt and dimension as per client's requirement.
Galvanizing
Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123.
Min Yield Stress
 345 Mpa
Min Tensile Strength
 470 Mpa ~ 630 Mpa
Voltage
10KV~550KV
Limited Weight
26 Ton/Container
Certificates
 ISO 9001-2008 , AAA credit rating, etc
Protection
Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area

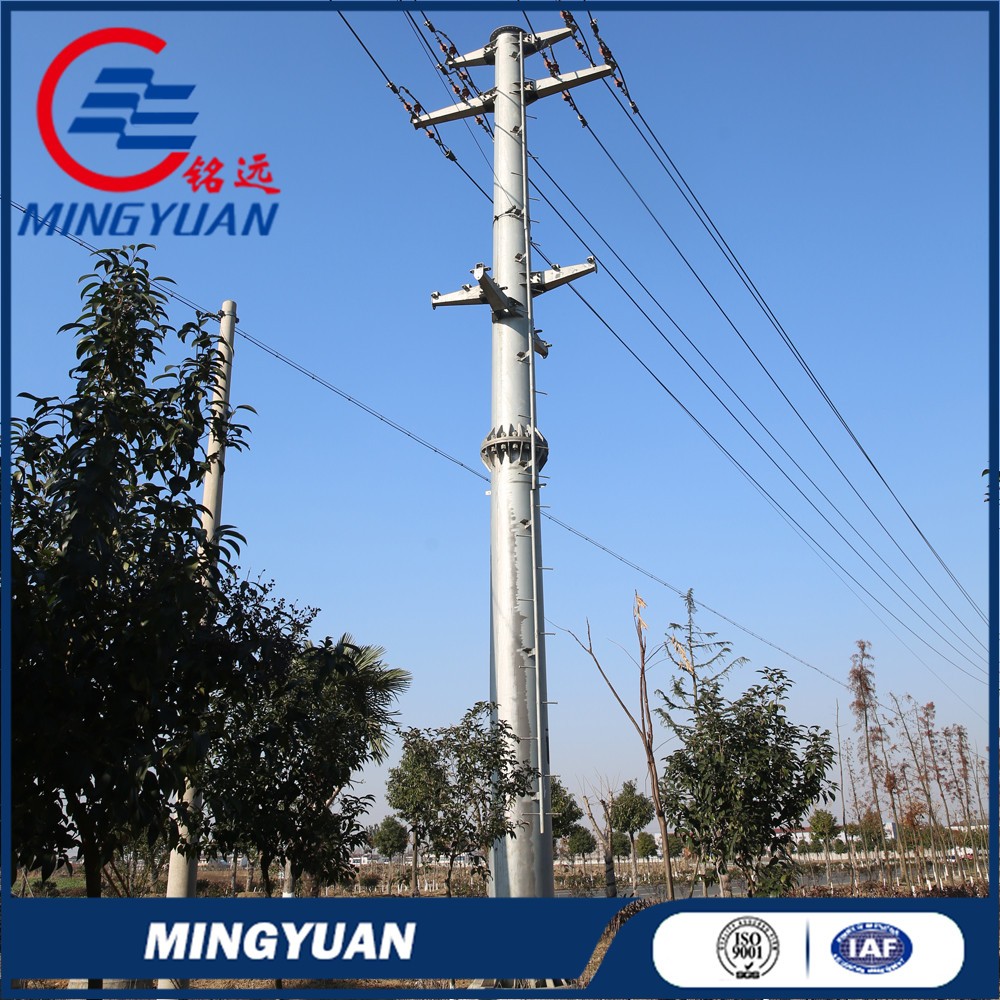

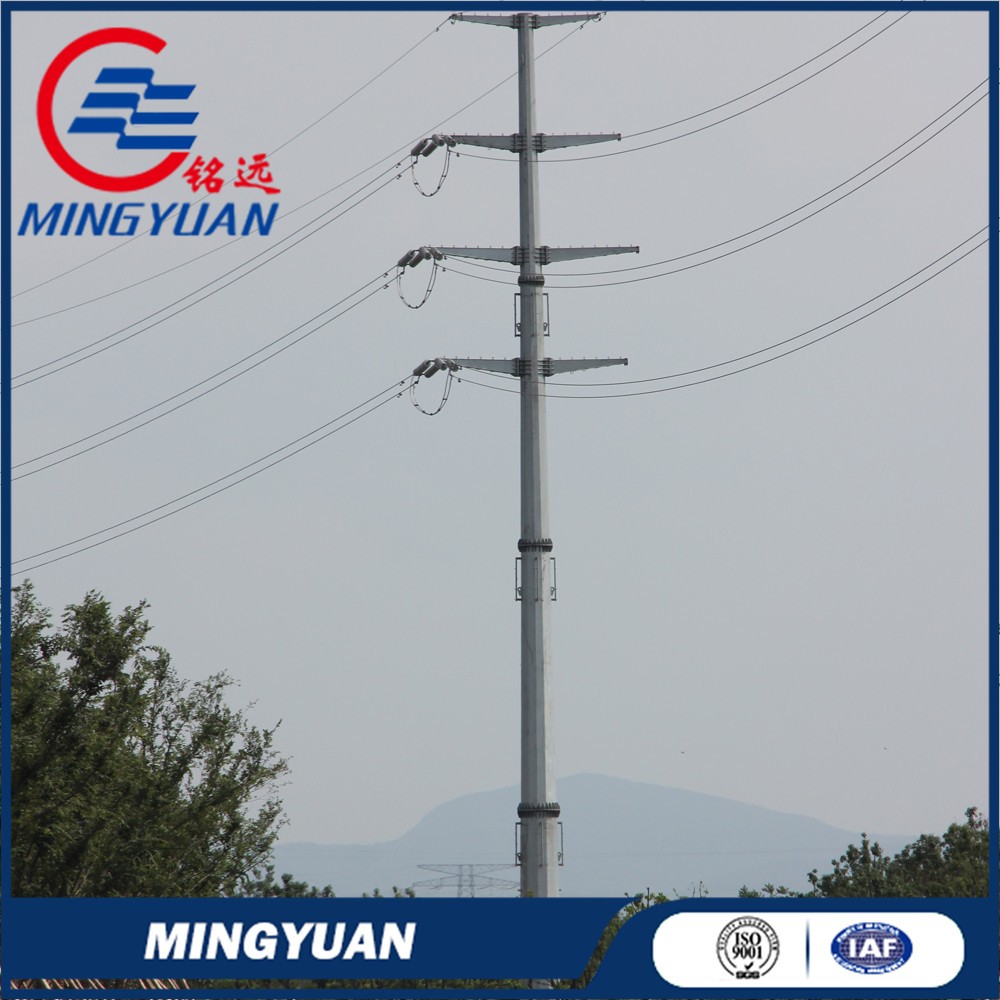

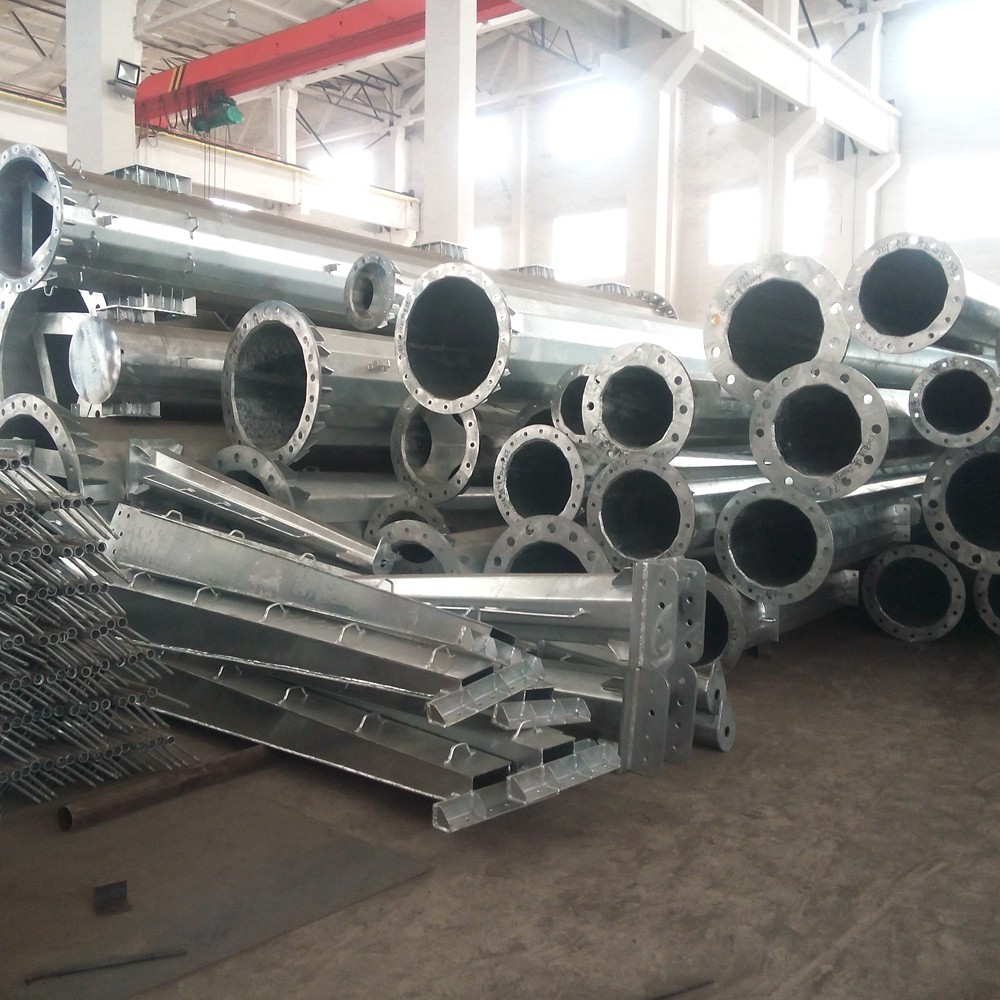

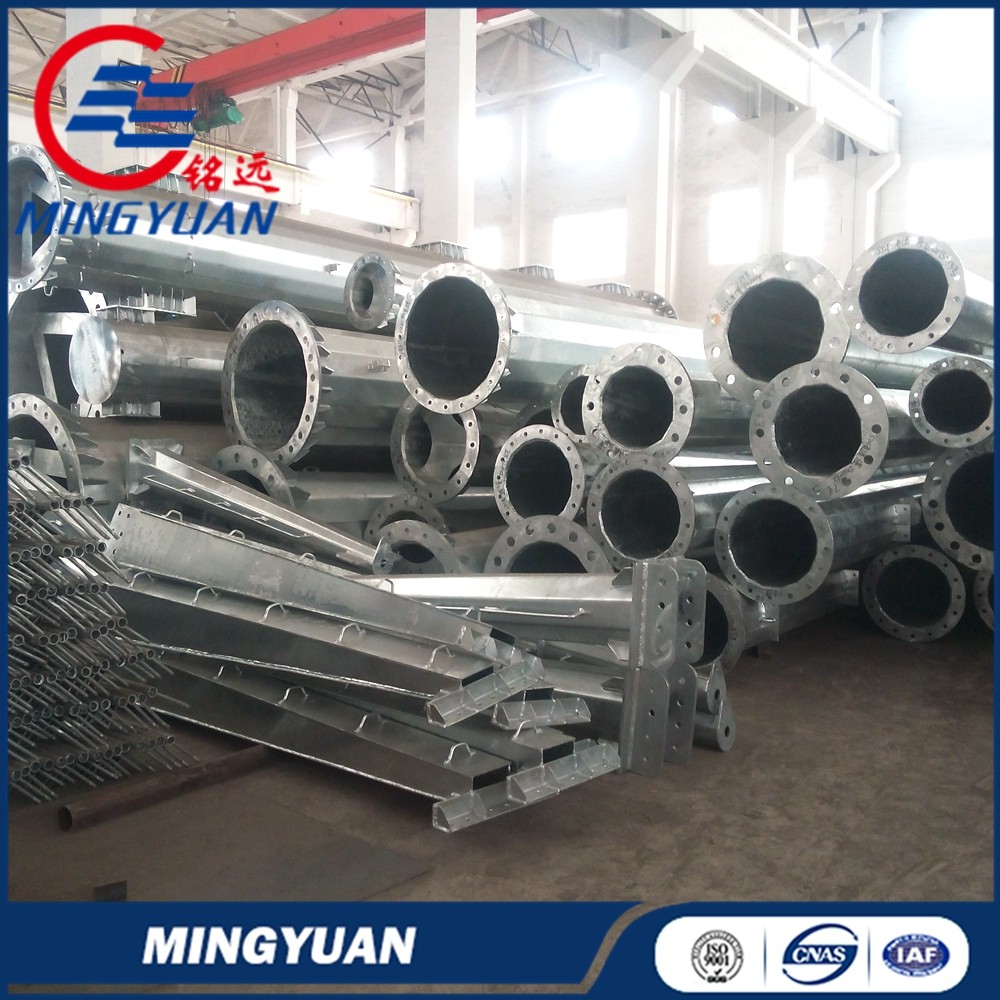

Products Show

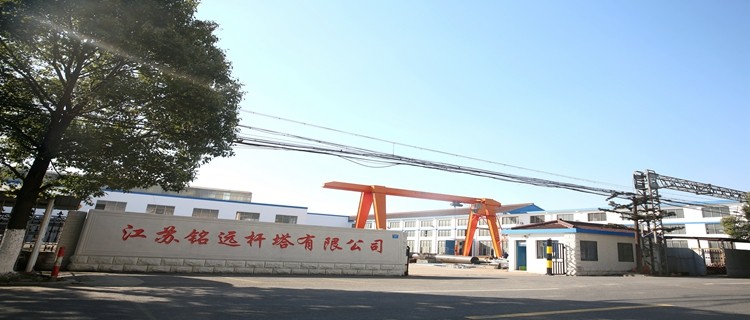

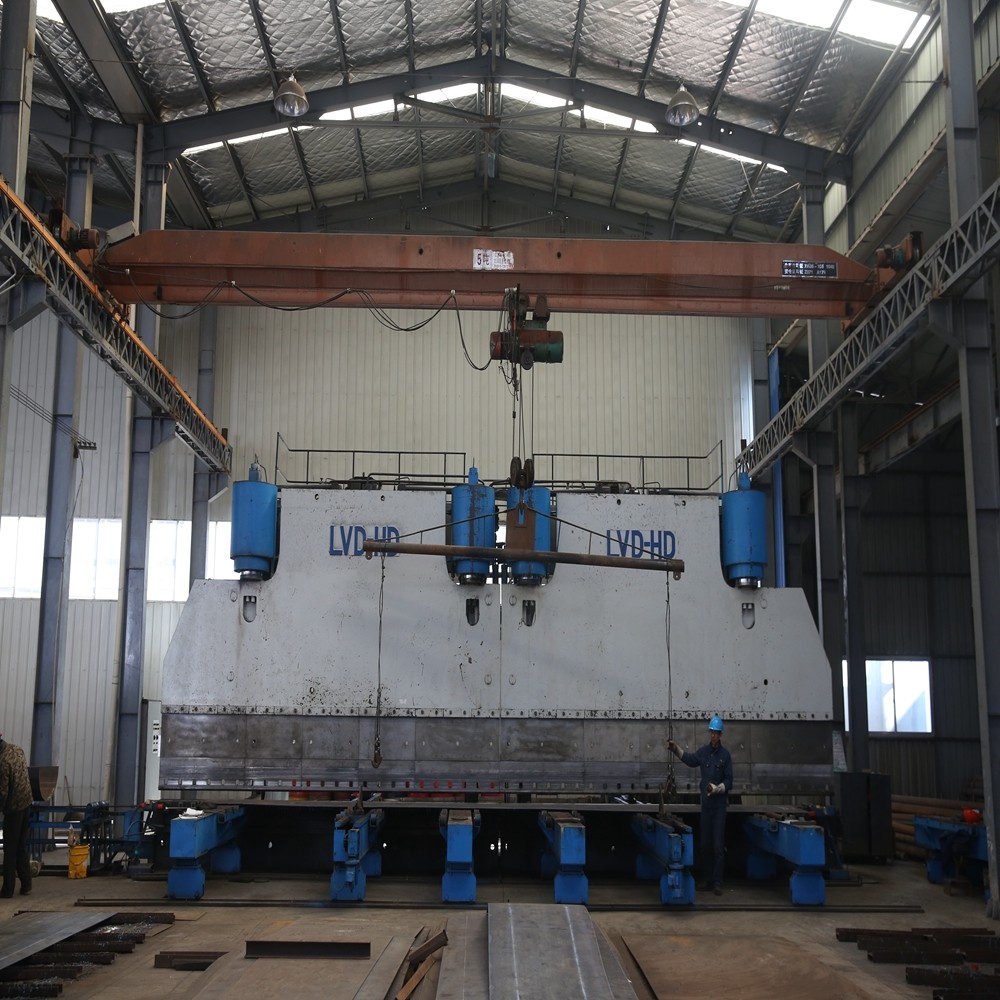

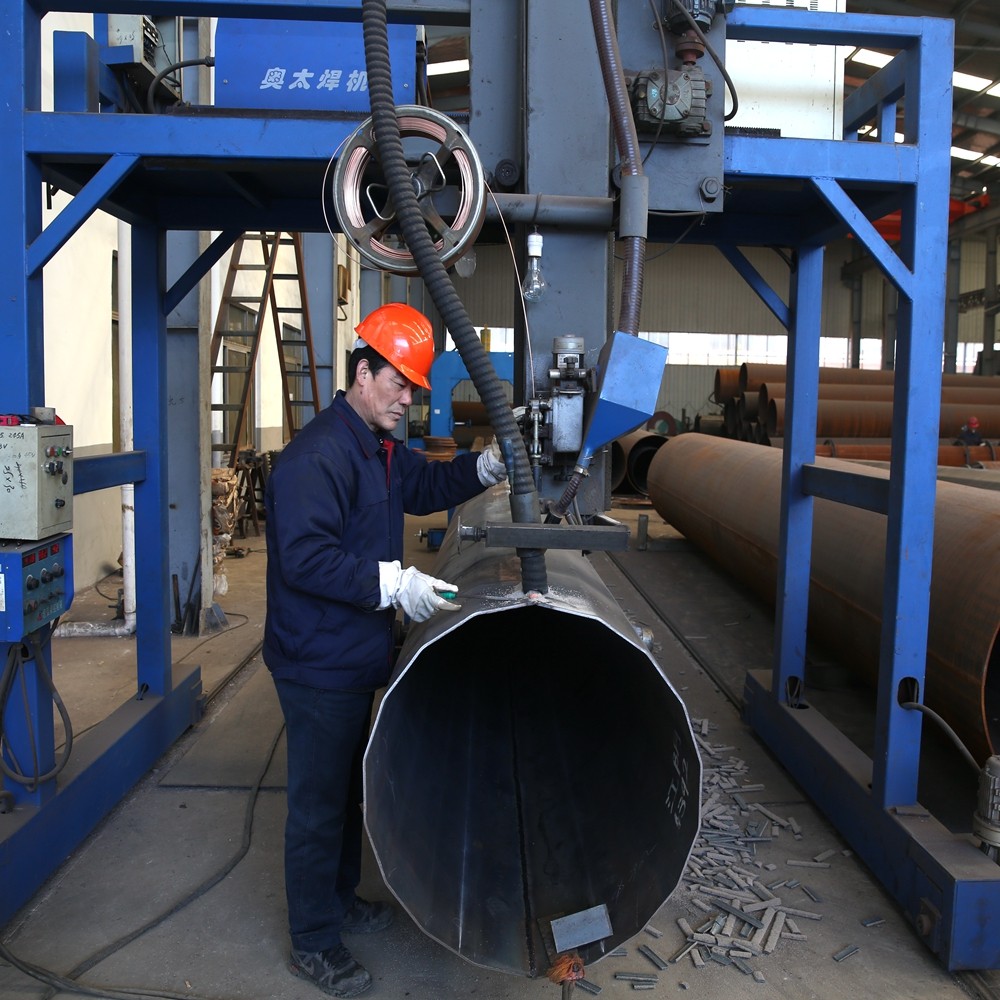

Our Company

Jiangsu Ming Yuan Tower Co., LTD, is a professional manufacturer and exporter that is specialized in designing, researching, developing and producing communication tower, power transmission tower, lightning rod tower, traffic pole, lighting pole, electric pole, solar bracket, electric power transformation component, iron accessories for transformer substation, power distribution box, and lighting. We are located in Wuxi City Jiangsu Province, with convenient transportation access. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets throughout the world.

The factory covers an area of 67000 m²,Our company have eight years of manufacturing experience.The annual output of our factory up to 11000 tons.Our annual sales is about US$ 20 Million.Our well-equipped facilities and excellent quality control throughout all stages of production win lots of customers' satisfaction. Approved by ISO9001:2008, we sell products with the most competitive price, good quality and best service and we have cooperated with customers from Oman, Ethiopia, Laos and Pakistan.

Customer Photo

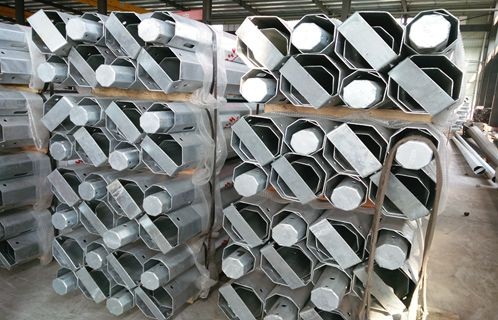

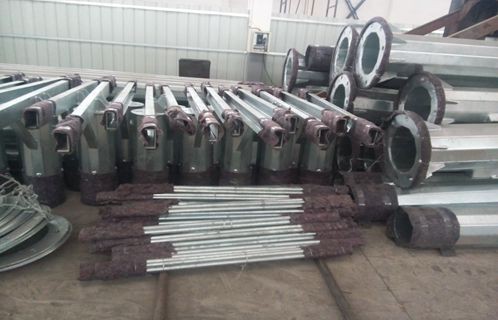

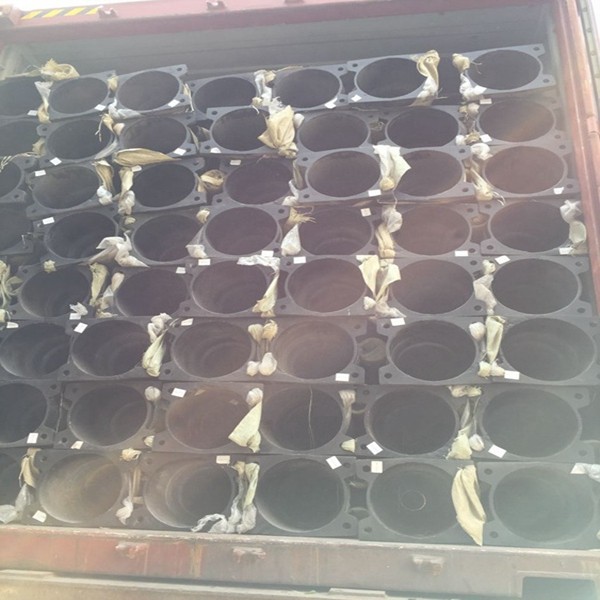

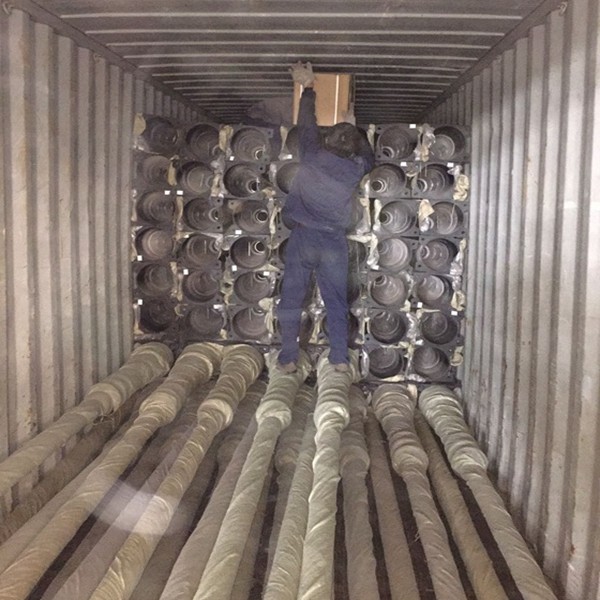

Packing & Delivery

12m galvanized steel electrical pole tower


Packing Details:

Top and bottom of the pole is covered by mat or straw bale and the body surface is cloth or bubble coated paper wrapped or the packing can be as customer's request.




Delivery Detail:

Shipped in 20 days after payment.
