Product Details:
|
| Height: | 15-60m | Material: | Q355B Steel |
|---|---|---|---|
| Surface Treatment: | Hot Dip Galvanized | Design: | ANSI/TIA-222-G |
| Life Period: | More Than 25 Years, It Is According To Installing Environment | Tolerance: | ±1% |
| High Light: | hot dip self support cell tower,triangular self support cell tower,q355b microwave transmission tower |
||
china manufacture hot dip galvanized 3 legged triangular radio telecom tower

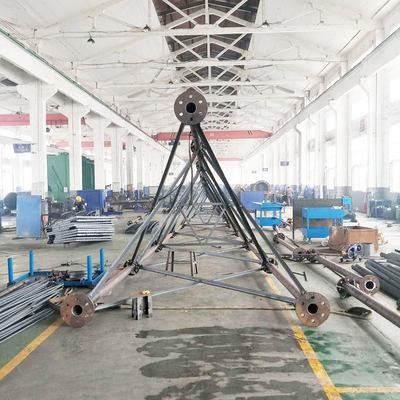

Triangular steel tower

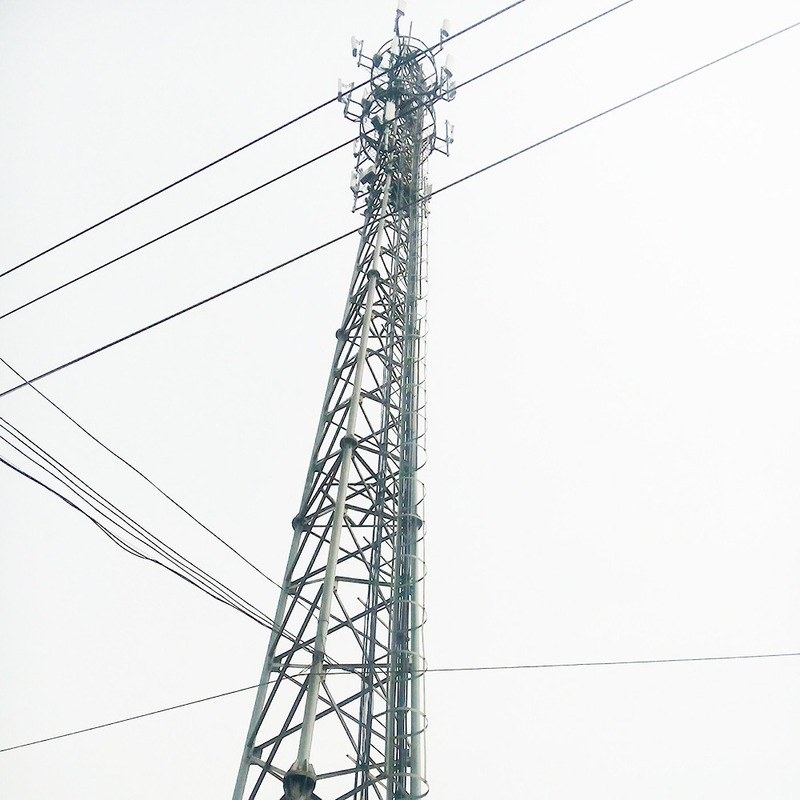

3 legged self supporting towers are made of triangular angular elements designed on a triangular base pattern. The communication tower is optimized for medium to heavy loads which is used for standard cellular sites.
Mingyuan towers can be equipped with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices, obstruction lights, lightning protection kit and more. All of the accessories can be installed at any desired height and orientation according to customer Specification.
| Height | From 15-60m or according to client’s requirement | |||||
| Suit for | signal Transmission and Distribution | |||||
| Shape | Polygonal or Conical | |||||
| Material | Normally Q235B/A36,Yeild Strength≥235MPa | |||||
| Q345B/A572,Yeild Strength≥345MPa | ||||||
| As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400 | ||||||
| Structure | 3 legged | |||||
| Tolerance of the dimension | According to client’s requirement | |||||
| Surface treatment | Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement | |||||
| Joint of Poles | Slip joint, flanged connected | |||||
| Standard | ISO9001:2008 | |||||
| Length of per section | Within 13M once forming | |||||
| Welding Standard | AWS(American Welding Society)D 1.1 | |||||
| Production Process | Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages | |||||
| Packages | Packing with plastic paper or according to client’s requirement | |||||
| Life Period | More than 25 years, it is according to installing environment | |||||
1, Cutting 2, Bending 3. Welding 4, Polishing 5, Galvanizing 6, Testing 7. Packing 8. Delivery
Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.
Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.
We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.
Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
1. Payment:
(1)Telegraphic Transfer(30% advance payment, balance before shipment
(2)Telegraphic Transfer(30% advance payment, balance against copy of documents
(3)Letter of Credit: at sight
2. Lead Time: 2 weeks after confirmed order
3. Delivery way: by sea
