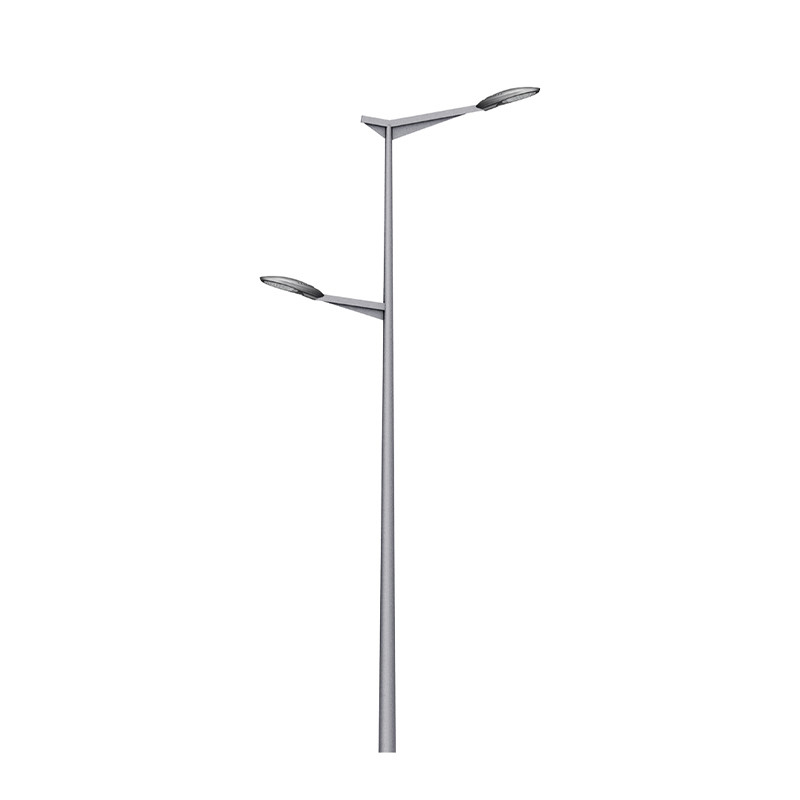

50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post

50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post
50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post 50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post 50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post 50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post

Large Image :  50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post

Product Details:
Place of Origin: Yixing, Jiangsu
Brand Name: mingyuan
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1500-20000/ set
Packaging Details: Top and bottom are packed with cloth
Delivery Time: 25 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800t/month

50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post

Description
Height: 3-12m Material: Q235B Steel
Surface Treatment: Hot Dip Galvanized Design: ANSI/TIA-222-G
Bolt: GR8.8 Life Span: 30 Years
High Light:

50ft galvanized street light pole

,

60ft galvanized street light pole

,

Q235b cast iron lamp post

Street Lighting Column Specifications 50ft 55ft 60ft Galvanized Steel for Street Light Use 85-100um



50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post 0



Model
MY-ST
Material
Q235 steel
Surface treatment
Galvanization & Painted
Coating
hot-dip,80um
Top diameter range
60-90mm
Bottom diameter range
132-210mm
Wall thickness range
2.5mm to 5.0mm
Height
5m-12m
Pole's shape
Conical/Round conical/Octagonal conical /Straight square /Tubular stepped /Polygonal
Lifespan
30 years





Type
Product
Upper/Bottom(MM)
THK(MM)
Flange(MM)
Basic(MM)
1
6M Pole
70/135
2.75
260*12
600MM*M18
2
6M Bent Arm Pole
58/145
2.75
260*12
600MM*M18
3
7M Pole
70/150
2.75
260*12
700MM*M18
4
7M Bent Arm Pole
58/160
2.75
300*12
700MM*M18
5
8M Pole
70/158
3
300*12
700MM*M18
6
8M Bent Arm Pole
58/160
3.5
300*12
750MM*M18
7
9M Pole
80/185
3.5
320*14
800MM*M20
8
9M Bent Arm Pole
58/170
3.5
320*14
800MM*M20
9
10M Pole
78/185
3.75
350*16
850MM*M22
10
10M Bent Arm Pole
58/190
3.75
350*16
850MM*M22
11
11M Pole
80/200
4
400*18
950MM*M22
12
11M Bent Arm Pole
58/190
4
400*18
950MM*M22
13
12M Pole
80/215
4.5
400*20
950MM*M22
14
12M Bent Arm Pole
60/205
4.5
400*20
950MM*M22
Other size also can be customized





50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post 1

50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post 2



50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post 3

50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post 4

1. Cutting  2. Bending  3. Welding  4. Polishing  5. Galvanizing  6. Testing  7. Packing  8. Delivery



50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post 5

50ft 60ft Galvanized Street Light Pole Q235b Cast Iron Lamp Post 6



Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.



Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.



We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.



Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.





FAQ

Q1:Can I have a sample order for lighting pole?
A:Yes,welcome sample order for testing and checking,mixed samples available.
Q2:Do you accept OEM/ODM?
A:Yes,we’re factory with standard production lines to fulfill different requirements from our clients.
Q3:What about the lead time?
A: Sample needs 3-5 days, bulk order need 1-2 weeks, if quantity more than 1000 sets 2-3 weeks.
Q4:How about your MOQ limit?
A:Low MOQ, 1pcs for sample checking available.
Q5:Guarantee for the products?
A:Usually 3-10 years for the lighting pole.
Q6:How to deal with the quality fault?
A:We use Q235 steel, processed with hot-dip galvanizing, spray-painting, high quality, guaranteed quality. In case of quality issue, during warranty period, all parts can be changed or replaced in any case of quality damage.
