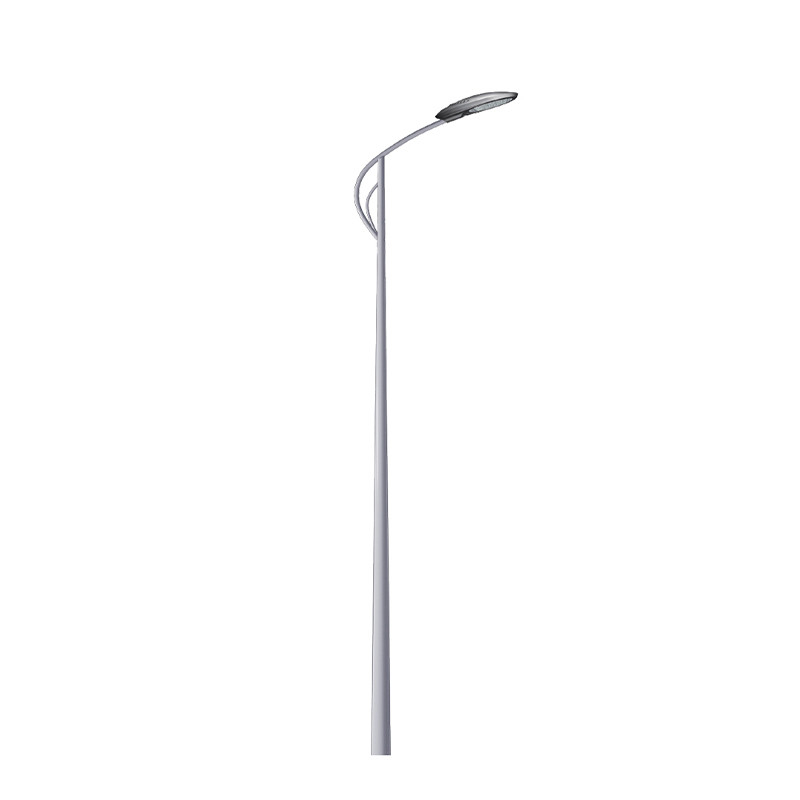

Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post

Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post
Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post

Large Image :  Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post

Product Details:
Place of Origin: Yixing, Jiangsu
Brand Name: mingyuan
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1500-20000/ set
Packaging Details: Top and bottom are packed with cloth
Delivery Time: 25 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800t/month

Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post

Description
Height: 3-12m Material: Q235B Steel
Surface Treatment: Hot Dip Galvanized Design: ANSI/TIA-222-G
Bolt: GR8.8 Life Span: 30 Years
High Light:

galvanized Steel Street Light Pole

,

single arm Steel Street Light Pole

,

pipe outdoor street lamp post

Street Lighting Column Specifications 50ft 55ft 60ft Galvanized Steel for Street Light Use 85-100um

Pipe Pole Outdoor Street Light Post Hot Sale Best Price Galvanized Steel China for Street Light Use Single Arm



Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post 0



Model
MY-ST
Material
Q235 steel
Surface treatment
Galvanization & Painted
Coating
hot-dip,80um
Top diameter range
60-90mm
Bottom diameter range
132-210mm
Wall thickness range
2.5mm to 5.0mm
Height
5m-12m
Pole's shape
Conical/Round conical/Octagonal conical /Straight square /Tubular stepped /Polygonal
Lifespan
30 years





Type
Product
Upper/Bottom(MM)
THK(MM)
Flange(MM)
Basic(MM)
1
6M Pole
70/135
2.75
260*12
600MM*M18
2
6M Bent Arm Pole
58/145
2.75
260*12
600MM*M18
3
7M Pole
70/150
2.75
260*12
700MM*M18
4
7M Bent Arm Pole
58/160
2.75
300*12
700MM*M18
5
8M Pole
70/158
3
300*12
700MM*M18
6
8M Bent Arm Pole
58/160
3.5
300*12
750MM*M18
7
9M Pole
80/185
3.5
320*14
800MM*M20
8
9M Bent Arm Pole
58/170
3.5
320*14
800MM*M20
9
10M Pole
78/185
3.75
350*16
850MM*M22
10
10M Bent Arm Pole
58/190
3.75
350*16
850MM*M22
11
11M Pole
80/200
4
400*18
950MM*M22
12
11M Bent Arm Pole
58/190
4
400*18
950MM*M22
13
12M Pole
80/215
4.5
400*20
950MM*M22
14
12M Bent Arm Pole
60/205
4.5
400*20
950MM*M22
Other size also can be customized



Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post 1

Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post 2











Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post 3



lighting pole: Q235 steel, one-time molding taper pole, automatic submerged arc welding technology, hot-dip galvanizing and powder coating, passing the salt spray test, strong corrosion-resisting character, life expectancy ≥ 30 years

Production Process: Plate - Cutting - Bending - Welding - Polishing  - Hot galvanizing – Testing - Packing - Delivery



Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post 4

Galvanized Steel Street Light Pole Single Arm Pipe Outdoor Lamp Post 5



Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.



Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.



We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.



Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.





FAQ

Q1: Are you a factory of a trading company?
A: We are a factory with 21 years of production experience, provide OEM&ODM, and have right of self import and export capability.

Q2: How do you control your product quality?
A: We have got ISO9001 quality management system, also we established a fully-equipment laboratory, and we will test each product carefully before shipping.

Q3:What is your MOQ?
A:MOQ always is 50pcs for wholesale orders, You can also buy a sample

Q4:What about lead time?
A:Sample needs 3-5 working days,mass productions time needs about 25 days for large quantity.

Q5: How do you ship the goods and how long does it take to arrive?
A: Sample shipped by DHL, UPS, FedEx ,TNT etc. It usually takes 3-5 days to arrive. Airline and sea shipping also optional .

Q6:Do you offer the guarantee for the products?
A:Yes,we offer 2-5 years warranty to our products.

Q7: What’s your service with your product?
A: We have a strong after-sale service team for our product and any of your project with 7*24hours.
