Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles

Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles
Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles

Large Image :  Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles

Product Details:
Place of Origin: Yixing, Jiangsu
Brand Name: mingyuan
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1500-20000/ set
Packaging Details: Top and bottom are packed with cloth
Delivery Time: 25 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800t/month

Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles

Description
Height: 3-12m Material: Q235B Steel
Surface Treatment: Hot Dip Galvanized Design: ANSI/TIA-222-G
Bolt: GR8.8 Life Span: 30 Years
High Light:

hexagonal galvanised street light pole

,

Q235b galvanised street light pole

,

solar highway light poles

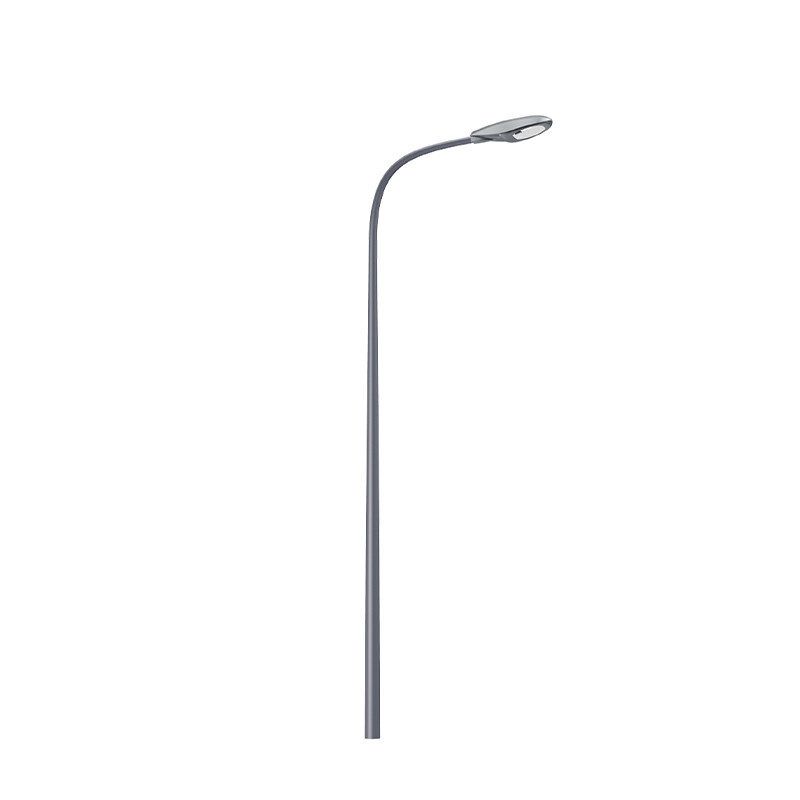

Hexagonal Galvanized Pole Highway Light Poles for Solar Street Light



Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles 0



Recommended Configurations
Poles height
3m to 40m
Shape
Round conical; Octagonal tapered; Straight square; Tubular stepped;Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
Material
Q235,Q345,Iron,Stell,Aluminum
Brackets/ Arm
Single or double brackets/ arm are in the shape and dimension as per customers requirement
Welding
It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international welding standard of CWB,BS EN15614
Thickness
1.8mm-20mm
surface treatment
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.BS EN ISO 1461
Base plate mounted
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement.
Wind resistance
Customized,according to customer's environment
Powder coating
Pure polyester powder painting, color is optional according to RAL Color stardand.
Customized/Design Service
Offered





Type
Product
Upper/Bottom(MM)
THK(MM)
Flange(MM)
Basic(MM)
1
6M Pole
70/135
2.75
260*12
600MM*M18
2
6M Bent Arm Pole
58/145
2.75
260*12
600MM*M18
3
7M Pole
70/150
2.75
260*12
700MM*M18
4
7M Bent Arm Pole
58/160
2.75
300*12
700MM*M18
5
8M Pole
70/158
3
300*12
700MM*M18
6
8M Bent Arm Pole
58/160
3.5
300*12
750MM*M18
7
9M Pole
80/185
3.5
320*14
800MM*M20
8
9M Bent Arm Pole
58/170
3.5
320*14
800MM*M20
9
10M Pole
78/185
3.75
350*16
850MM*M22
10
10M Bent Arm Pole
58/190
3.75
350*16
850MM*M22
11
11M Pole
80/200
4
400*18
950MM*M22
12
11M Bent Arm Pole
58/190
4
400*18
950MM*M22
13
12M Pole
80/215
4.5
400*20
950MM*M22
14
12M Bent Arm Pole
60/205
4.5
400*20
950MM*M22
Other size also can be customized



Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles 1

Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles 2





Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles 3



lighting pole: Q235 steel, one-time molding taper pole, automatic submerged arc welding technology, hot-dip galvanizing and powder coating, passing the salt spray test, strong corrosion-resisting character, life expectancy ≥ 30 years

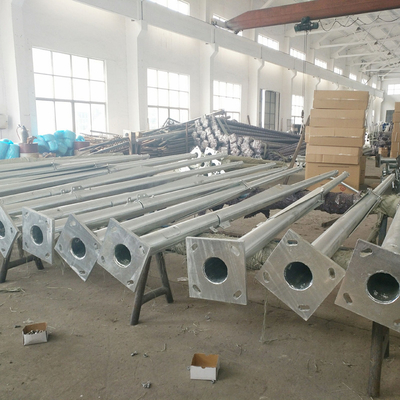

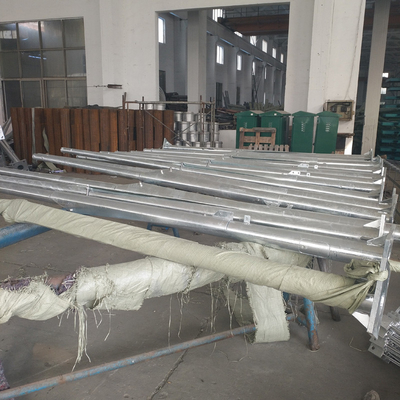

Production Process: Plate - Cutting - Bending - Welding - Polishing  - Hot galvanizing – Testing - Packing - Delivery



Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles 4

Hexagonal Q235b Galvanised Street Light Pole , Solar Highway Light Poles 5



Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.



Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.



We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.



Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.





FAQ

Q1: Are you a factory of a trading company?
A: We are a factory with 21 years of production experience, provide OEM&ODM, and have right of self import and export capability.

Q2: How do you control your product quality?
A: We have got ISO9001 quality management system, also we established a fully-equipment laboratory, and we will test each product carefully before shipping.

Q3:What is your MOQ?
A:MOQ always is 50pcs for wholesale orders, You can also buy a sample

Q4:What about lead time?
A:Sample needs 3-5 working days,mass productions time needs about 25 days for large quantity.

Q5: How do you ship the goods and how long does it take to arrive?
A: Sample shipped by DHL, UPS, FedEx ,TNT etc. It usually takes 3-5 days to arrive. Airline and sea shipping also optional .

Q6:Do you offer the guarantee for the products?
A:Yes,we offer 2-5 years warranty to our products.

Q7: What’s your service with your product?
A: We have a strong after-sale service team for our product and any of your project with 7*24hours.
