Product Details:
|
| Material: | Q355B, Q460, Q235B, SS400, A572 | Surface Treatment: | Hot Dip Galvanized, Painting, Powdering |
|---|---|---|---|
| Design: | ANSI/TIA-222-G | Bolt: | GR8.8, GR6.8 |
| Pole's Shape: | Conical/Round Conical/Octagonal Conical /Straight Square /Tubular Stepped /Polygonal | Product Name: | Galvanized Outdoor Octagonal Tapered Pole Steel Street Light Pole With Single Or Double Arms 4m 6m 10m 12m |
| High Light: | Galvanized Outdoor Steel Street Light Pole,10m Steel Street Light Pole,Octagonal Tapered Steel Street Light Pole |
||
Galvanized Outdoor Octagonal Tapered Pole Steel Street Light Pole with Single or Double Arms 4m 6m 10m 12m
| Pole Height(m) | Diameter(mm) | Thickness(mm) | Base plate(mm) |
| 6-8 |
70-170 ,75-175 80-180 ,70-180 |
3.0 ,3.25 3.5 ,3.75 |
260*260*12 280*280*14 300*300*16 |
| 9-10 |
80-190 ,90-200 100-200 |
3.5 ,3.75 4.0 |
300*300*16 320*320*18 350*350*20 |
| 11-12 | 90-200 ,100-200 |
3.5 ,3.75 4.0 |
320*320*18 350*350*20 400*400*20 |
| 12-20 |
90-200 ,100-200 160-380 |
3.5 ,3.75 4.0 ,6-8 |
320*320*18 350*350*20 400*400*20 650*650*25 |

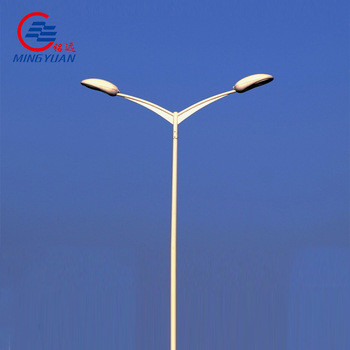

Double arms lighting poles features:
1) Material: steel, high-pressure sodium lamp, lamp holder for aluminum alloy, stainless steel rod for galvanizing;
2) Height: up to 50 meters;
3) Shape of section: round,hexagon and octagon;
4) Thickness of bending plate:3 – 4mm;
5) Normal light is from 150W to 500W or any other light by customer's requirements;
6) All details are based on customer's requirements;
7) Short construction cycle, less land occupation, low overall cost and easy maintenance.
Manufacturing process: Cutting →Bending →Welding→Dimension verify →Pole arm welding →Polish, surface clean →Flange welding →Hole drilling →surface clean→ Hot dip galvanization →Spray →Recalibration →Packaging →Shipping
Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.
Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.
We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.
Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
